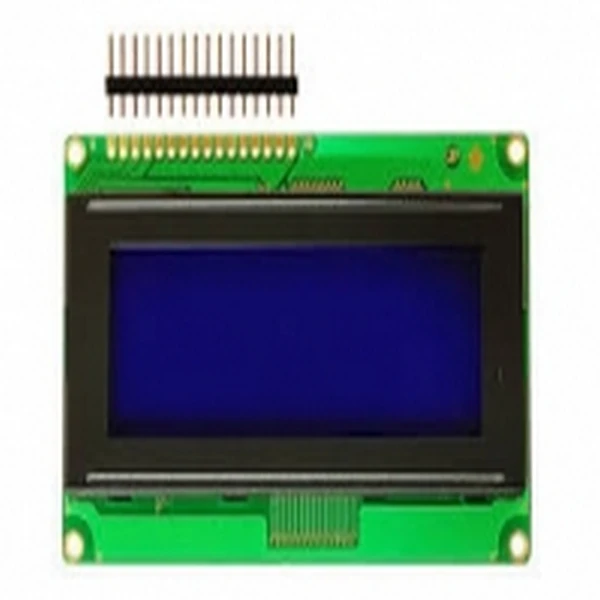

LCD 4*20 Blue

موجود در انبار

توضیحات

characters LCD
20 characters wide, 4 rows
White text on blue background
Connection port is 0.1″ pitch, single row for easy breadboarding and wiring
Single LED backlight with a resistor included, you can power it directly from 5V. If it’s too bright for you, it can be dimmed easily with a resistor or PWM and uses much less power than LCD with EL (electroluminescent) backlights
Can be fully controlled with only 6 digital lines!
Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
Up to 8 extra characters can be created for custom glyphs or ‘foreign’ language support (like special accents)
Comes with necessary contrast potentiometer and strip of header

برچسب: , ,
